Mixed modules

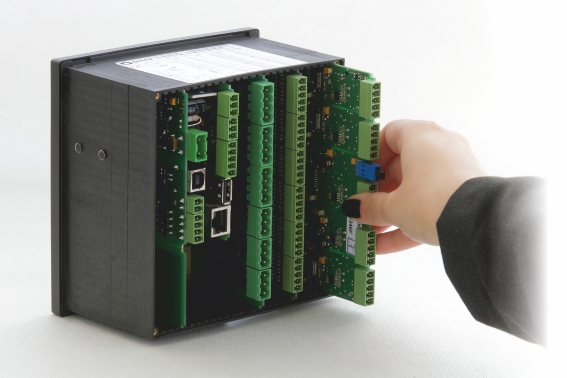

In order to increase the number of satisfied users of the MultiCon recorders, we are gradually expanding the I/O module range. Mixed UIN/UID modules (analogue-NTC or analogue-digital) has 16 or 24 inputs which allows to measure current, voltage and temperature (using NTC sensors) and can be equipped with non-isolated digital inputs.

Available modules:

  • UI4N8 : 4 x voltage inputs + 4 x current inputs + 8 x NTC inputs
  • UI4D8 : 4 x voltage inputs + 4 x current inputs + 8 x digital inputs
  • UI8N8 : 8 x voltage inputs + 8 x current inputs + 8 x NTC inputs
  • UI8D8 : 8 x voltage inputs + 8 x current inputs + 8 x digital inputs


To make sensor connection easier, inputs are grouped and all ground terminals are common but separated from power supply and other modules.
